Product Description

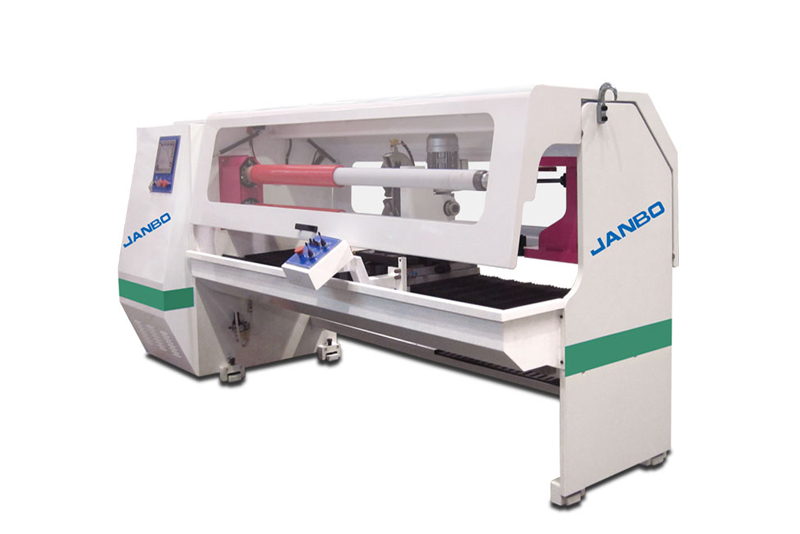

JCD Series Two-axis automatic cutting table Specifications:
Maximum cutting diameter: 160mm
Minimum cutting width: 2mm
Cutting accuracy: +0.1mm
Cutting core diameter: 1 "-3"
Machine cutting effective width: 1.3-1.6m
use
Suitable for cutting BOPP/PVC/PE/ transparent tape/fine paper/double-sided tape/kraft paper tape, etc.
peculiarity
1. Drive part of the main machine: AC motor with inverter as cutting material drive, acceleration and deceleration is stable and fast.
2. Central control unit: Using programmable central control, multiple sizes can be set in the coaxial automatic conversion cutting.
3. Operation panel part: The operation interface adopts the LCD touch screen 10.4 inches, which can set various cutting conditions and monitor the operation status directly on the screen.
4. Motor control system: the central control system for PLC programmable controller, coaxial can be set a variety of sizes, cutting can be automatically adjusted according to the set size and number of cutting width.
5. Cutting coil positioning system: Use Mitsubishi series brand (Schneider) servo motor control, high-precision ball screw for dimensional positioning and use linear slide bearing tool holder; The positioning action is precise and smooth.
6. Feed positioning system: The use of Mitsubishi series brand (Schneider) servo motor control feed mode, can be anthropomorphic to do four-section speed feed cutting. Increase efficiency and get the best quality.
Seven. Round knife Angle adjustment: Use Mitsubishi series brand (Schneider) servo motor to calculate the round knife Angle steering, according to different materials to do different Angle changes (Angle adjustment range ±8°) when the cutting plane is not good, you can directly change the cutting Angle. It can reduce the number of tool changes and improve production efficiency.
8. Knife seat part: double knife double axis design, up and down can be adjusted respectively, cutting depth can be adjusted, save PE pipe, convenient swing Angle.
8. Quick shaft changing device: This machine has a small cutting shaft to choose from, and adopts a quick shaft changing method to meet the needs of different tube core materials.
