Single cutting machine

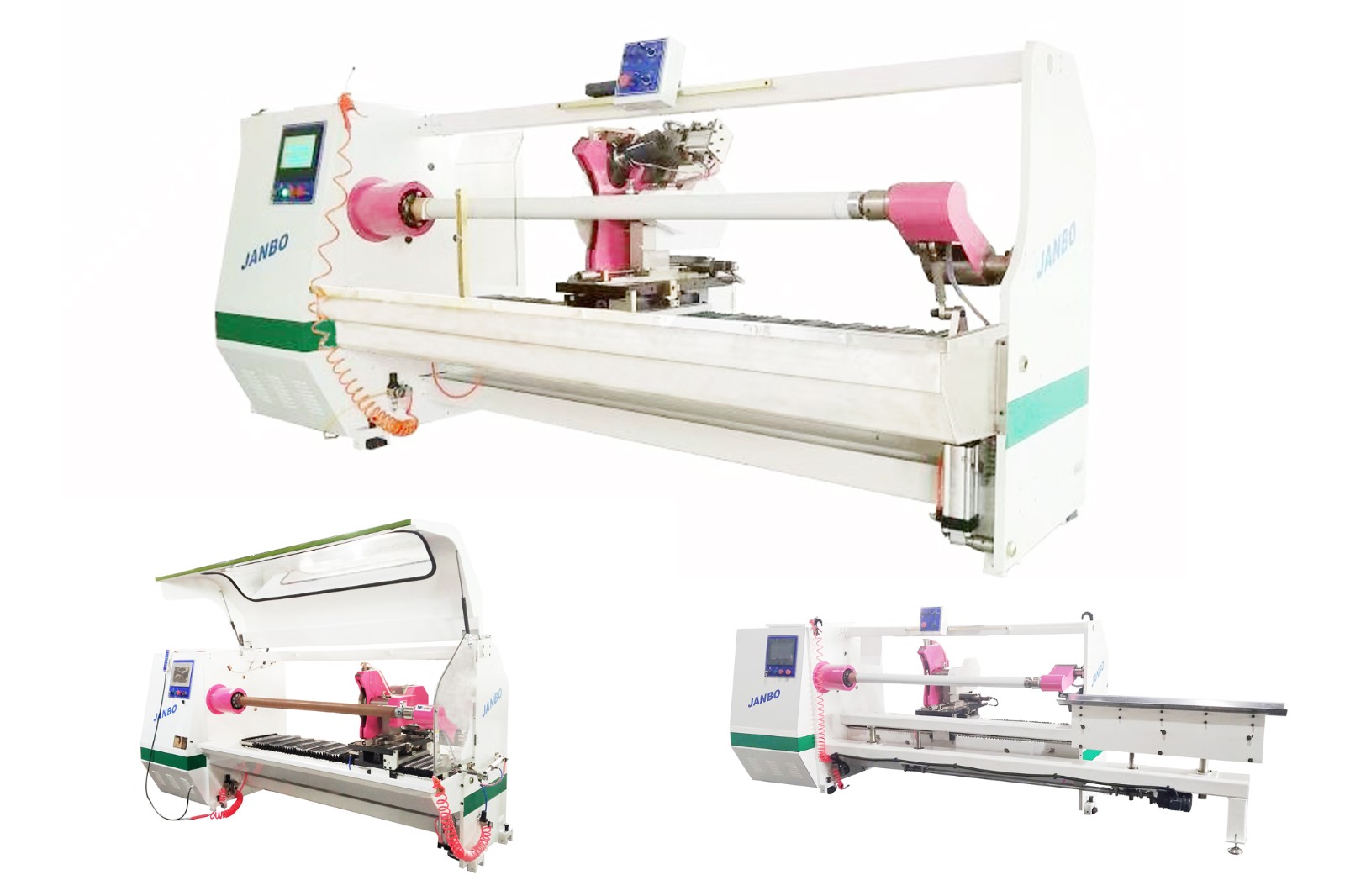

JCS Series Single shaft cutting machine

Suitable for cutting various kinds of tape

Specification:

Max. Cutting O.D : 400mm

Min. Cutting Width : 2mm

Cutting precision:+0.1mm

Cutting Core I.D : 1"-3"

Machine Width : 1.3M-1.6M

Feature:

Main Motor: cutting shaft and circular blade are driven by A.C motor with inverter control, which is able to set RPM and running direction according to different requests.

Central Control: PLC control system, which allows to cut one log roll into various sizes by changing modes automatically.

Display Mode: all functions are operated on LCD touch screen, which is easy for operation and data setting.

Width Setting: width setting is controlled by servo motor(Mitsubishi/Schneider) with ball screw and guide rails to ensure accurate actions.

Cutting System: knife feeding is controlled by servomotor (Mitsubishi/Schneider)

                       which can do four-speed cutting to improve efficiency and

                       ensure the best quality.

Knife Angle Adjustment: using servo motor(Mitsubishi/Schneider) to control

                       cutting angle by caculating blade angle direction. It can adjust

                       (±8°) for cutting didderent materials to ensure a smooth roll

                      surface and reduce knife changing times.

Quick shaft changing device: this device is equipped for chaning shaft quickly

                        when you want to use smaller shaft can be as an optional part of

                       this machine for matching the small log roll.
