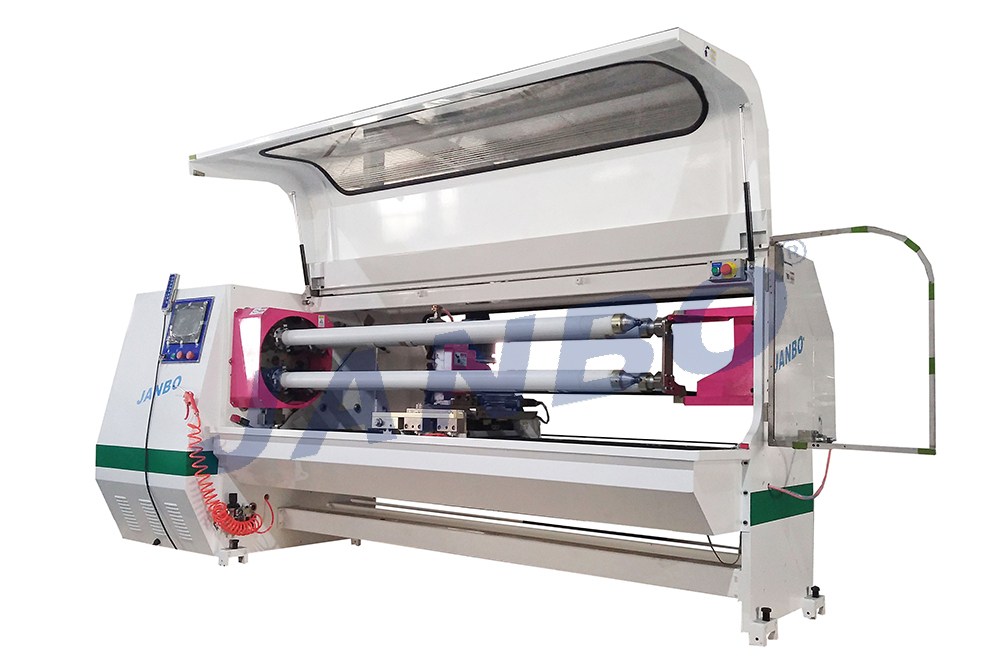

PVC four-axis cutting table

JCF Series 4-axis automatic cutting table Specifications:

Z Large cutting diameter: 160mm

Z small cutting width: 2mm

Cutting accuracy: +0.1mm

Cutting core diameter: 1.5 "-3"

Machine cutting effective width: 1.3-1.6m

use

Suitable for cutting BOPP/PVC/PE/ transparent tape/fine paper/double-sided tape/kraft paper tape, etc.

peculiarity

1. Drive part of the main machine: the cutting table adopts AC motor and inverter as the cutting material transmission, acceleration and deceleration is stable and fast.

2. Central control unit: Using programmable central control, multiple sizes can be set in the coaxial automatic conversion cutting.

3. Operation panel part: The cutting table operation interface adopts the LCD touch screen of 10 inches, which can set various cutting conditions and monitor the operation status directly on the screen.

4. Motor control system: the central control system of the cutting table is a PLC programmable controller. Multiple sizes can be set in the coaxial, and the cutting width can be automatically adjusted according to the set size and quantity when cutting.

5. Cutting coil positioning system: The use of Mitsubishi series brand (Taiwan FATEK) servo motor control, high-precision ball screw for dimensional positioning and the use of linear slide bearing tool holder; The positioning action is accurate and smooth.

6. Feed positioning system: The use of Mitsubishi series brand (Taiwan FateK) servo motor control feed mode, can be anthropomorphic to do four-section speed feed cutting. Improve efficiency and get the best quality.

Seven. Round knife Angle adjustment: The cutting table uses the Mitsubishi series brand (Taiwan FateK) servo motor to calculate the round knife Angle steering, and makes different Angle changes according to different materials (Angle adjustment range ±8°) when the cutting plane is not good, the cutting Angle can be directly changed. It can reduce the number of tool changes and improve production efficiency.

8. Automatic coil changing device: The cylinder drive positioning teeth are driven by movable splines to ensure fast and accurate coil changing; At the same time, the coil can be changed without stopping, saving the downtime of loading and unloading, and improving production efficiency.

9. Quick shaft changing device: The cutting table machine has a small cutting shaft to choose from, and adopts a quick shaft changing method to meet the needs of different tube core materials.
