| Product description | ||

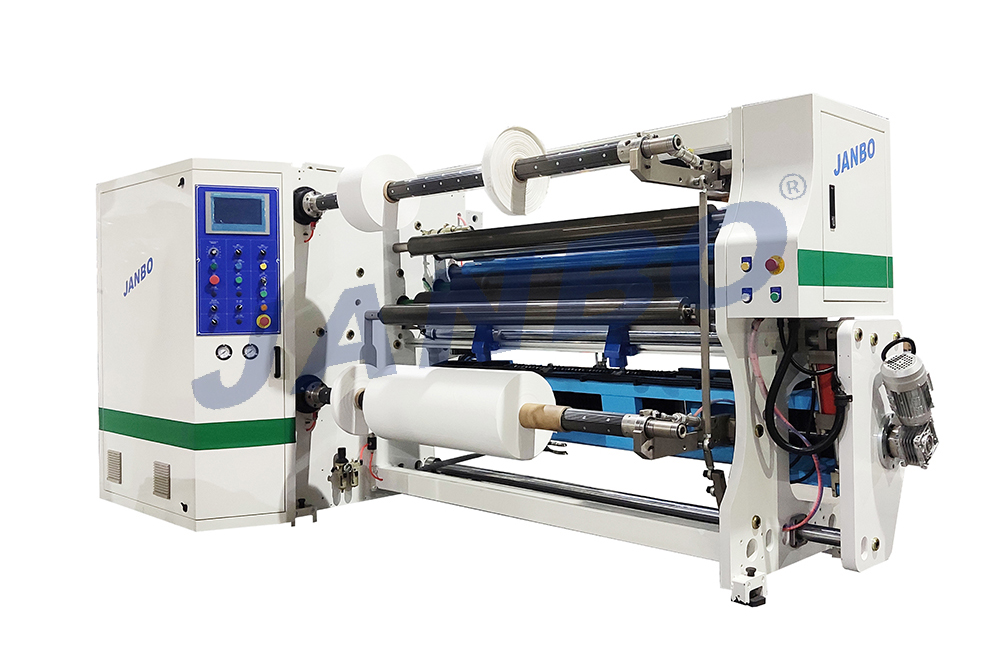

Function: All kinds of paper, non-woven film and other materials slitting and rewinding. Specifications: Maximum winding diameter: 800mm Core diameter: 3-6" Mechanical width: 1M-1.8M Maximum feeding diameter: 1200mm Minimum slitting width: 50mm Maximum mechanical speed: 300M/Min Features: 1. Coiling power part: two coiling motors cooperate with the main motor to do three-motor continuous control, the main motor separates the feeding motor and the winding motor to control the tension, the tension of the finished product is stable, and the appearance is beautiful. 2. Winding machine part: The winding shaft adopts air expansion/slip system, which can automatically adjust the winding tension when winding, and the effect is better for materials with uneven thickness. 3. Motor control part: The operation interface adopts the LCD touch screen, which can directly set various winding conditions and operating conditions on the screen. The control part uses a programmable controller for mechanical action control, and has a self-testing system. When the machine fails, it can diagnose the fault cause by itself. 4. Cutting tool part: can choose the upper and lower round knife mechanism or air knife mechanism, easy to operate, can be suitable for a variety of materials. 5. Auxiliary unloading device: After the material is rolled out, it can be pushed to the auxiliary unloading arm to save packing time and protect the winding shaft. 6. Basic discharge form: combined discharge stand, short path, more convenient material. Optional accessories 1. Auxiliary feeding of raw materials: The use of hydraulic power, suitable for the workshop without driving, can save manpower and shorten the loading and unloading time. 2. Ear material handling device: Optional independent or connected wire winding machine to pick up waste, in addition to strong windmill can be used for non-viscous materials. 3. Automatic line setting device: suitable for slitting after printing, which can be accurately aligned with the printing reference line for slitting. |
