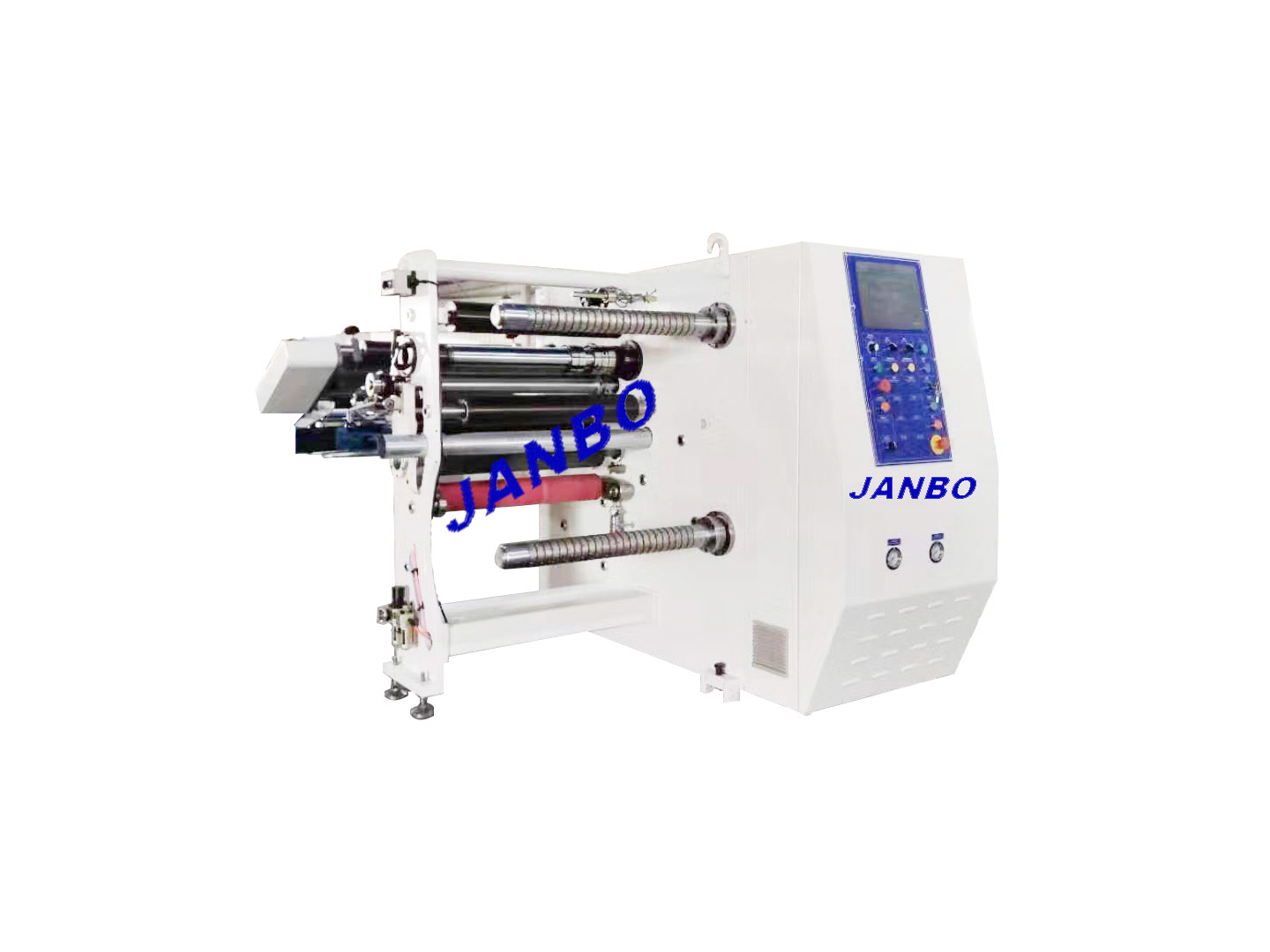

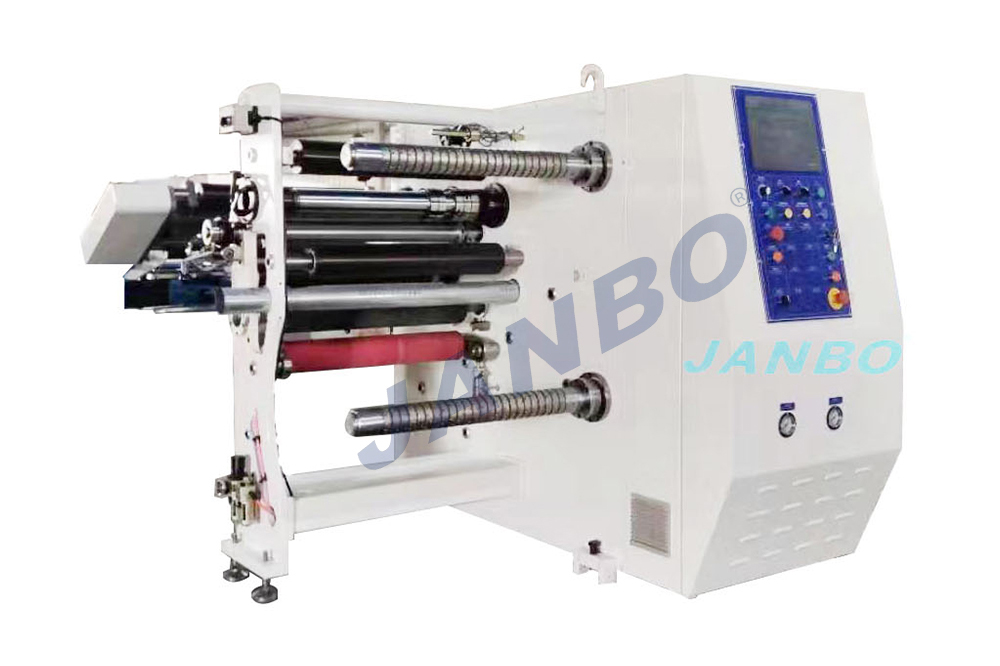

Self-adhesive slitting machine

Function: All kinds of paper, film and other materials slitting and rewinding.

Specifications:

* Maximum winding diameter: 650mm/800mm

* Coiling core diameter: 3-6"

* Manufacturing width: 0.5M-0.7M

* Maximum feeding diameter: 800mm

* Minimum slitting width: 50mm

* Maximum mechanical speed: 300M/Min

Purpose:

Cutting all kinds of paper, film, tape and other materials

Features:

1. Coiling power part: two coiling motors cooperate with the main motor to do three-motor continuous control, the main motor separates the feeding motor and the winding motor to control the tension, the tension of the finished product is stable, and the appearance is beautiful.

2. Winding machine part: the winding shaft adopts slip system, which can automatically adjust the winding tension when winding, and the effect is better for materials with uneven thickness.

3. Motor control part: The operation interface adopts the LCD touch screen, which can directly set various winding conditions and operating conditions on the screen. The control part uses a programmable controller for mechanical action control, and has a self-testing system. When the machine fails, it can diagnose the fault cause by itself. 4. Blowing waste: the sound is small, especially suitable for material trimming.

5. Paper receiving table device: pneumatic control, material finishing, jointing more smooth and beautiful.

6. Basic discharging form: connected discharging machine base, occupying a small area.

Optional accessories:

1. Auxiliary winding press wheel: suitable for the flattening work of aluminum foil easily warped edge materials.

2. Automatic line setting device: suitable for slitting after printing, which can be accurately aligned with the printing reference line for slitting.
