Product description | ||

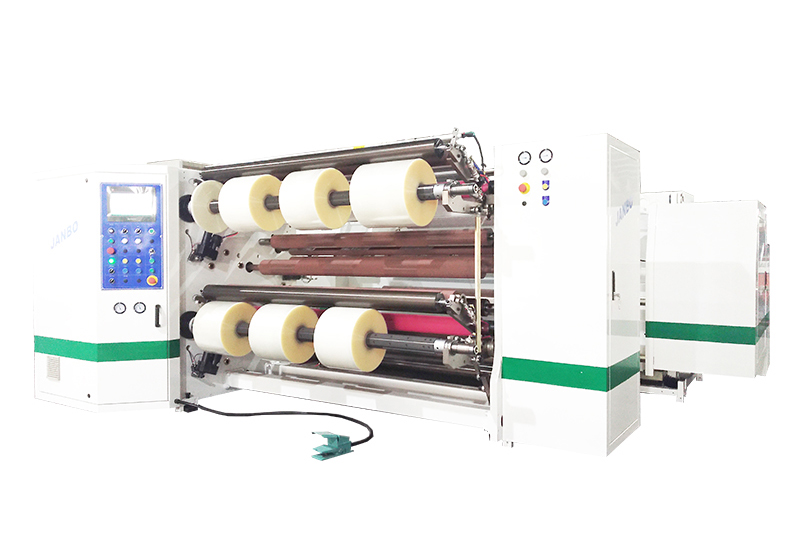

Function: All kinds of tape, glazing film and other materials cut and rewind. Specifications: * Maximum winding diameter: 600mm * Core diameter: 3" * Manufacturing width: 0.7M-1.8M * Maximum feeding diameter: 1000mm * Minimum cutting width: 30mm * Maximum mechanical speed: 300M/Min Features: 1. The main engine system adopts three motors linkage control, high speed, stable tension, beautiful appearance of the finished product. 2.Equipped with tension detector device, programmable PLC automatic tension control. 3. The winding press wheel system adopts a combination mechanism of intermittent displacement and pneumatic auxiliary control, which can keep the distance between the press wheel and the finished product process minimum, and can also press the finished product to meet the process requirements of cutting and rewinding of various materials. 4. The winding system can be used as a quick exchange between the air expansion shaft and the slip shaft. 5. Equipped with finished products quick discharge device, reduce the work intensity of the operator. 6. The waste collection system can be selected as left and right shift surface coiling type, servo motor control center coiling type, fan waste collection type. 7. The tool system adopts industrial flat knife, simple process and easy operation. 8. The unwinding system is equipped with EPC/LPC automatic deviation correction device, oil pressure auxiliary loading and unloading operation mechanism and receiving platform device. 9. The unwinding system can be arbitrarily selected with shaft/shaftless connection type, shaft/shaftless separation type |
