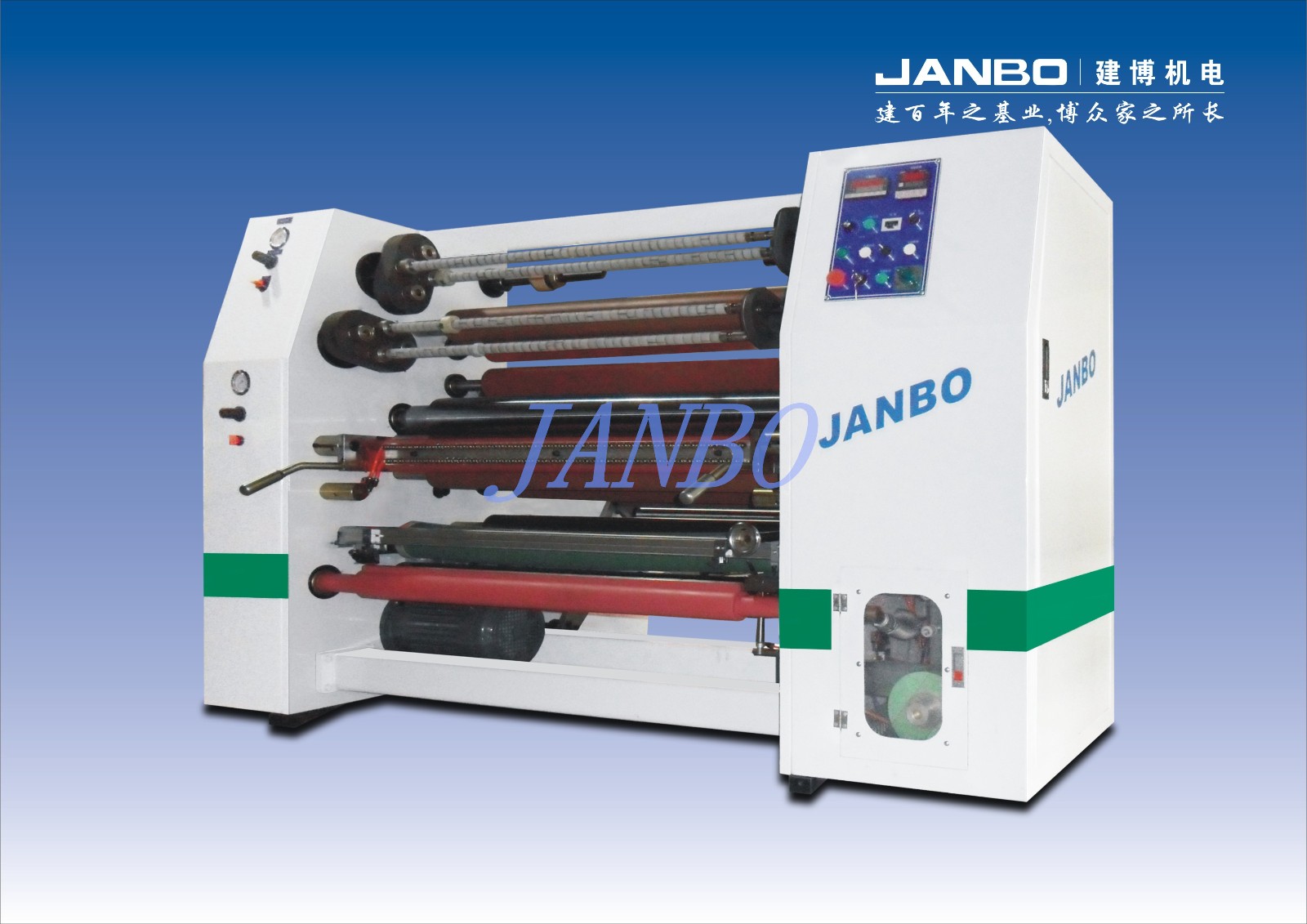

JSF-1.0 Series Four shafts slitter rewinder for opp package and stationery tape
Application:
Suitable for slitting opp package stationery tape.
Specification:
*Max. Rewinding O.D : 200mm
*Rewinding Core I.D :1-3 "
*Machine Width : 1.0M-1.3M
*Max. Unwind O.D : 800mm(500mm)
*Machine Speed : 180M / Min
*Min. slitting width: 10mm
Feature:
Machine Drive: A.C. Motor and inverter drive material in operation.
Rewind Drive: using clutch for rewind tension control and it works with differential friction rewinding system to ensure that the tension of each roll is the same.
Slitting device: razor blade
Core Unloading Device: unloading the finished rolls and loading new paper core at the same time, which greatly improves the production efficiency. It is quite suitable for mass production.
Unwind Base: connected unwind base for easy operation.
Unwind lay-on roller: using double lay-on rollers to smooth the material wrinkles to make sure production quality
Electric Control: using photoelectric sensor with two phase length calculator to control length, which makes length accurate.
Optional Parts:
Aluminum mold set: One aluminum mode set for one slitting widt
Tabbing Device : fully auto control(automatically slow down and tab, which can improve production efficiency. Tabbing length can be set freely).
Unwind Pick-Up Lift: loading jumbo roll quickly could save time and manpower.
Noise Reduction Hood: reducing noise to make sure a safety working environment.
Air score knife: for slitting cloth tape and masking tape.
